Film Laser Cutting System

Film Laser Cutting System
YIELDEdGE FLC
Film Laser Cutting System

The Film Laser Cutting system handles multiple processes of cutting, peeling, and cleaning of a film or sheet. With two types of laser, it processes full-cutting to cut films and half-cutting to cut only upper layers from the multiple layers of films with CO2 laser and higher accuracy cutting process with UV laser. Available for large-size substrates, this system can meet the mass-production needs.

Features

Sales Records

It is used to manufacture flexible OLED displays.

Specification

Process Laser cut (Full/Half/Pad cuts)
Peeling
Plasma cleaning
Visual inspection
Laser type CO2 Laser, UV Laser
Cutting accuracy ≤ ± 50 µm

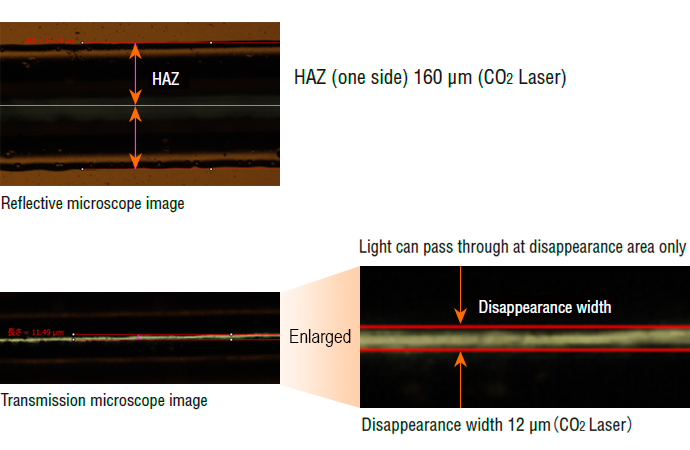

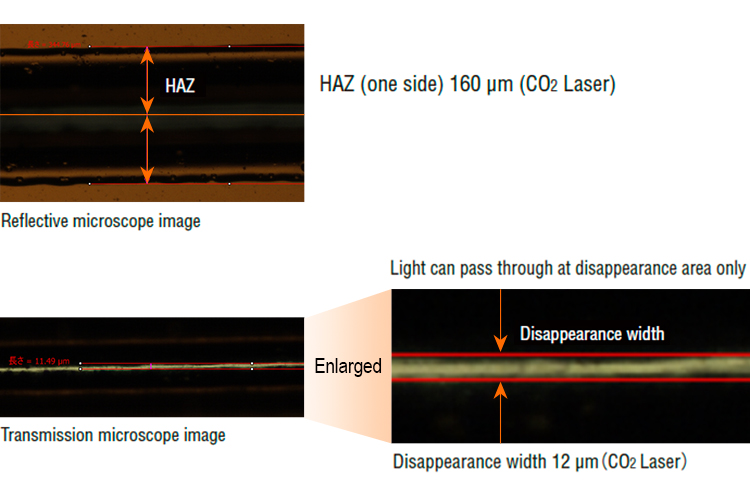

Process Examples
