Laser Micro Drilling System

Laser Micro Drilling System
YIELDvia™ ELD

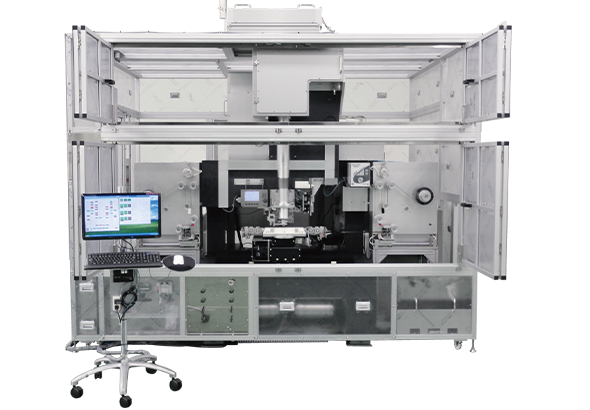

Laser Micro Drilling System

The Laser Micro Drilling system forms fine holes in the unit of a micrometer for various materials such as polyimide tape, glass and others. This process is using the laser annealing technic on local position and is adopted in mass production for electronic devices. We have been developing optics systems and irradiation position control systems for laser process and accumulate technology to meet industrial request.

Features

Sales Records

We have sold the system for medical and beauty equipment.

Specification

Laser type Excimer Laser
Laser wavelength 248 nm
Beam size 4 x 2 mm
Maximum energy density 1.6 J/cm2
Beam scan XY Stage

Process Example

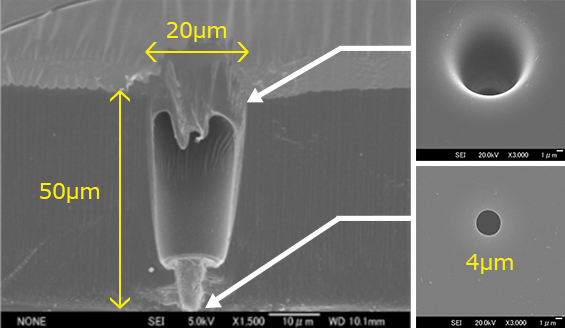

Example of two-step machining made with the LMD system

Example of two-step machining made with the LMD system


*YIELDvia: Japanese Trademark Registration number 6576711
